Components and Components Location: Components

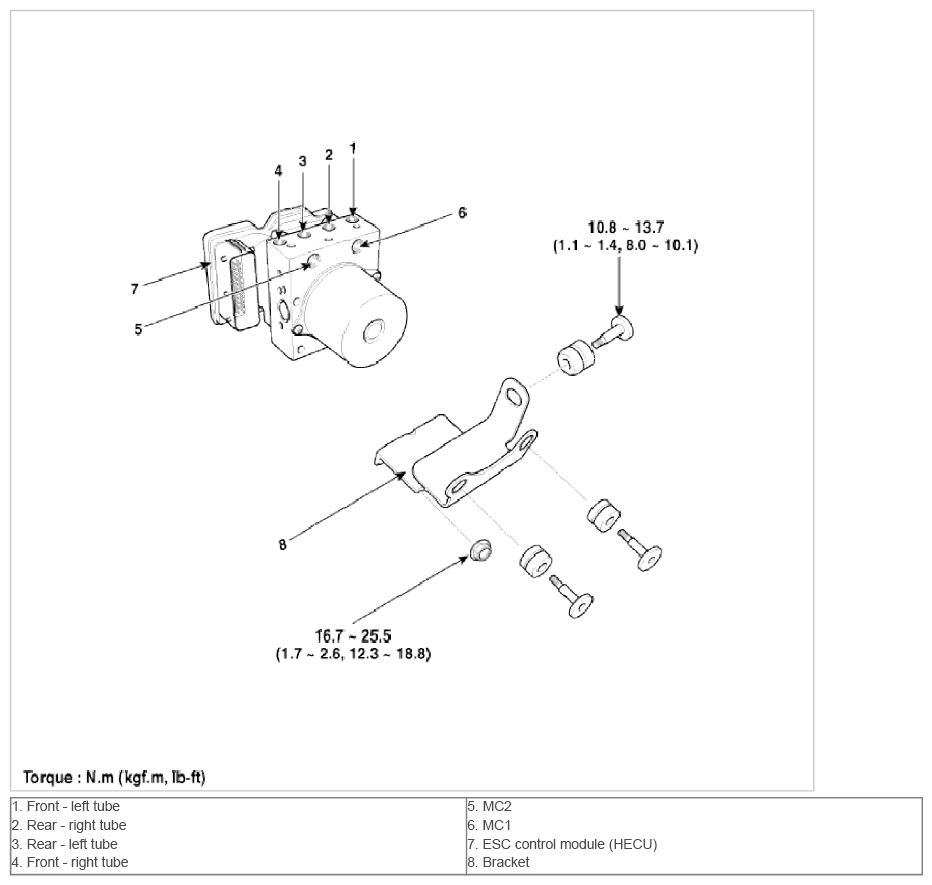

Fig 1: ESC Control Module Related Components With Torque Specification

G09264174

Courtesy of HYUNDAI MOTOR AMERICA
