Rear Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear door trim.

    Refer to REAR DOOR TRIM .

  3. Remove the power window switch assembly (A) after loosening the mounting screws (3EA).

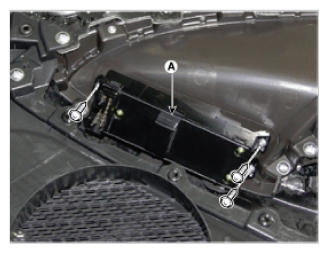

    Fig 1: Identifying Rear Power Window Switch Assembly And Mounting Screws
    G09268735Courtesy of HYUNDAI MOTOR AMERICA
  4. Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.
    Fig 2: Rear Power Window Switch Continuity Reference Chart
    G09268736Courtesy of HYUNDAI MOTOR AMERICA
