Repair Procedures: Inspection

  1. Disconnect the ignition switch connector (B) and key warning switch connector (A) from under the steering column.

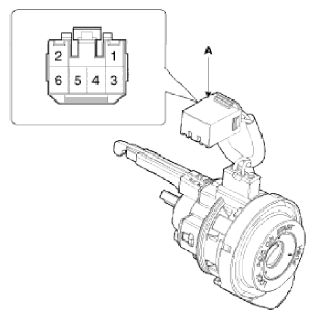

    Fig 1: Identifying Key Warning Switch Connector
    G09269065Courtesy of HYUNDAI MOTOR AMERICA

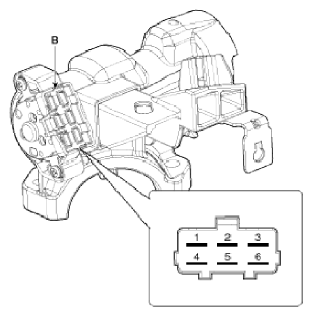

    Fig 2: Identifying Ignition Switch Connector
    G09269066Courtesy of HYUNDAI MOTOR AMERICA
  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.

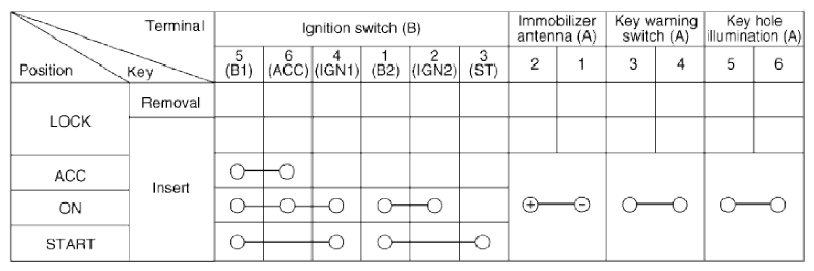

Fig 3: Ignition Switch Continuity Reference Chart
G09269067Courtesy of HYUNDAI MOTOR AMERICA
