Circuit Diagram
Circuit Diagram

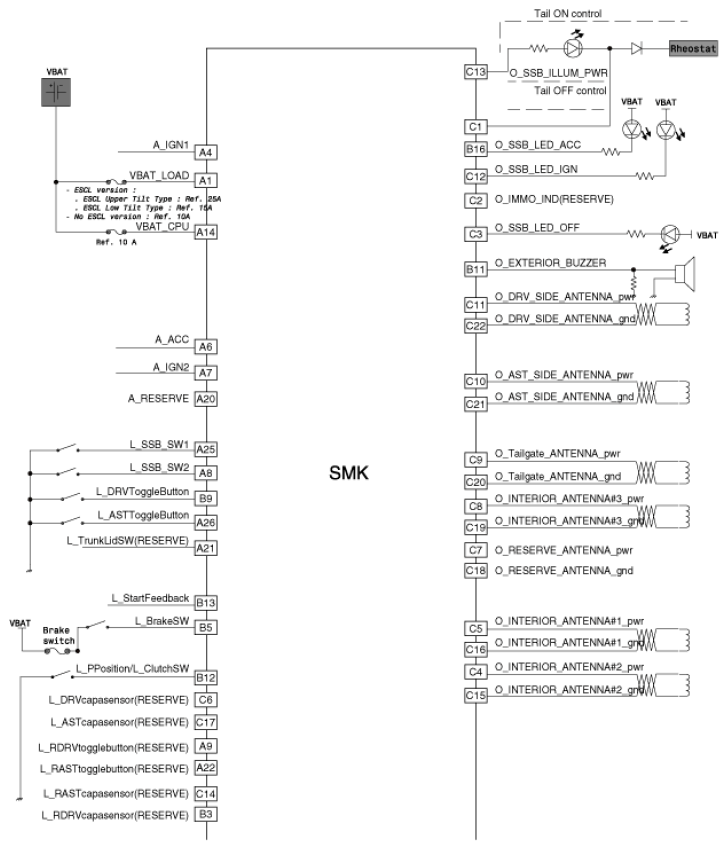

Fig 1: SMK - Circuit Diagram (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

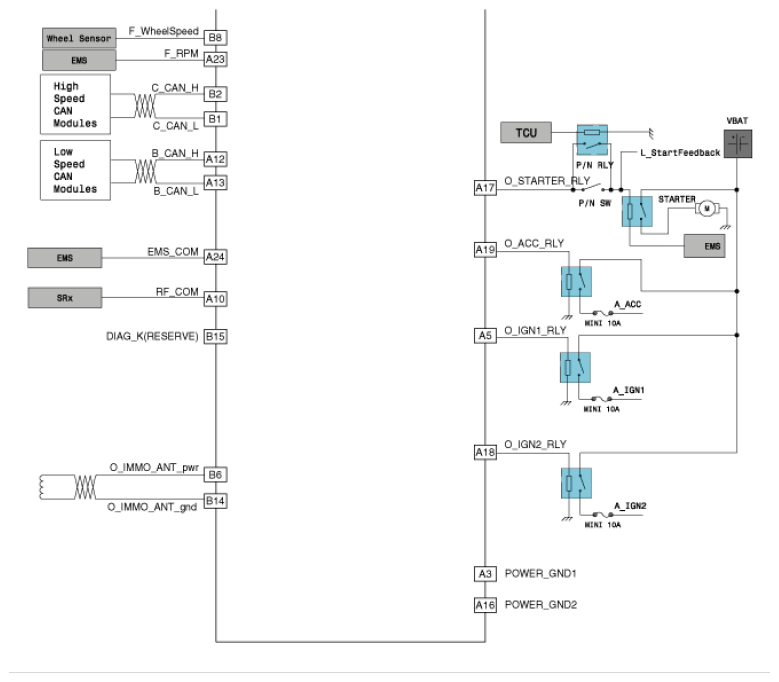

Fig 2: SMK - Circuit Diagram (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
