Interior 2 Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the console rear complete assembly.

    (Refer to "[CONSOLE REAR COMPLETE ASSEMBLY] .

  3. Remove the interior 2 antenna (B) after loosening the mounting bolts (2EA) and disconnecting the connector (A).

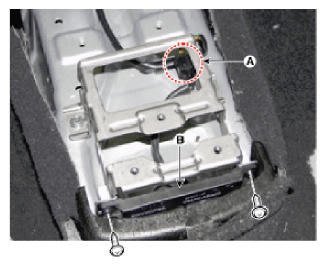

    Fig 1: Identifying Interior 2 Antenna And Connector
    G09268497Courtesy of HYUNDAI MOTOR AMERICA
