Interior 1 Antenna

NOTE: Take care not to scratch the crash pad and related parts.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad center panel.

    (Refer to CRASH PAD CENTER PANEL .

  3. Remove the interior 1 antenna (B) after loosening the mounting nuts (2EA) and disconnecting the connector (A).

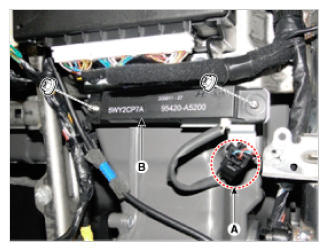

    Fig 1: Identifying Smart Key Unit And Connector
    G09268496Courtesy of HYUNDAI MOTOR AMERICA
