Tailgate Switch

  1. Check for continuity between the tailgate latch terminals.

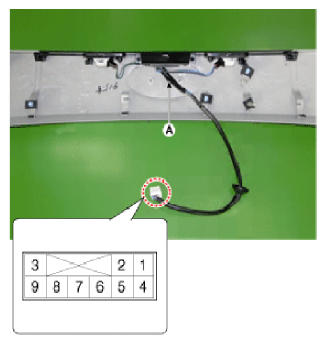

    Fig 1: Identifying Tailgate Latch Terminals
    G09268510Courtesy of HYUNDAI MOTOR AMERICA
  2. If continuity is not specified, inspect the switch
    Fig 2: Tailgate Switch Continuity Reference Chart
    G09268511Courtesy of HYUNDAI MOTOR AMERICA
