Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the liftgate trim and Luggage side trim.
Refer to TAIL GATE TRIM .
Disconnect the power PTG spindle connector (A).

Fig 1: Identifying Power PTG Spindle Connector
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver (A), lift up slightly the socket clips (B) of both ends on the lifter (D), and then remove the PTG spindle from the bracket (C).
CAUTION: Take care not to be closed the tail gate, when removing the lift.

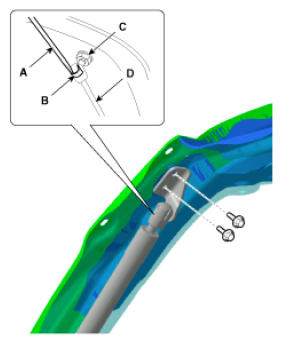

Fig 2: Removing PTG Spindle From Bracket Using Screwdriver
Courtesy of HYUNDAI MOTOR AMERICA
If it is necessary, remove the nuts and replace the PTG spindle bracket (A).
Tightening torque:

6.9 ~ 10.8N.m (0.7 ~ 1.1kgf.m, 5.1 ~ 8.0 lb-ft)

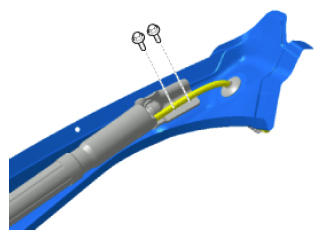

Fig 3: Identifying PTG Spindle Bracket Mounting Nuts
Courtesy of HYUNDAI MOTOR AMERICA
