Santa Fe GLS, FWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Power Tailgate Module
>>
Components and Components Location
>>
Block Diagram
Block Diagram

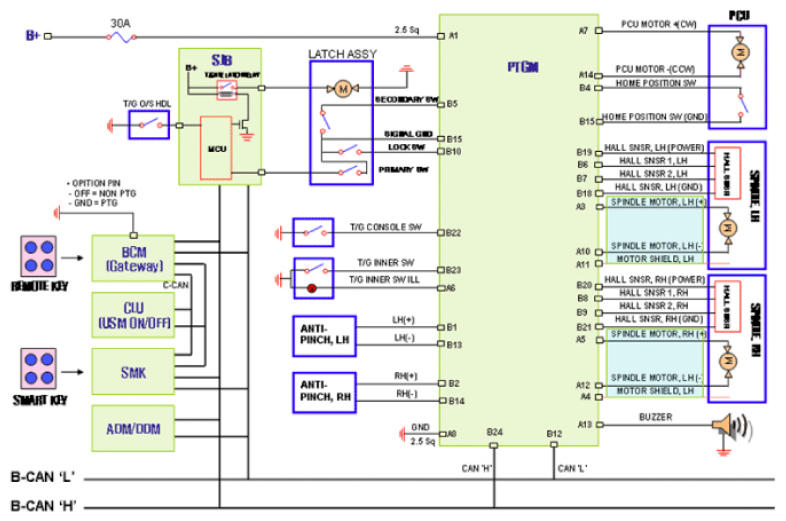

Fig 1: Power liftgate Module Block Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Power liftgate Module Terminals Condition Chart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
