Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad center panel.

    Refer to CRASH PAD CENTER PANEL .

  3. Disconnect the body control module connectors (A).

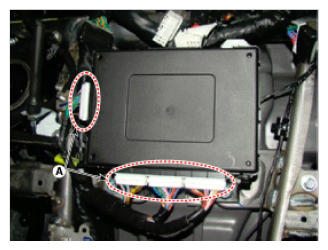

    Fig 1: Identifying Body Control Module Connectors
    G09268577Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the body control module (A) after loosening the nuts.
    Fig 2: Identifying Body Control Module
    G09268578Courtesy of HYUNDAI MOTOR AMERICA
