Wheel Runout

  1. Jack up the vehicle and support it with jack stands.
  2. Measure the wheel runout with a dial indicator as shown in Fig 1.
  3. Replace the wheel if the wheel runout exceeds the limit.
    WHEEL RUNOUT CHART

    Limit Radial Axial
    Runout mm Aluminum 0.3 (0.0118 in.) 0.3 (0.0118 in.)

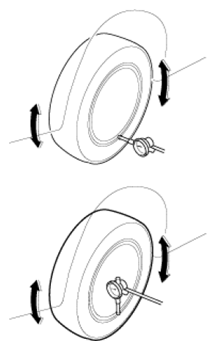

    Fig 1: Measuring Wheel Runout
    G06512870Courtesy of HYUNDAI MOTOR CO.
