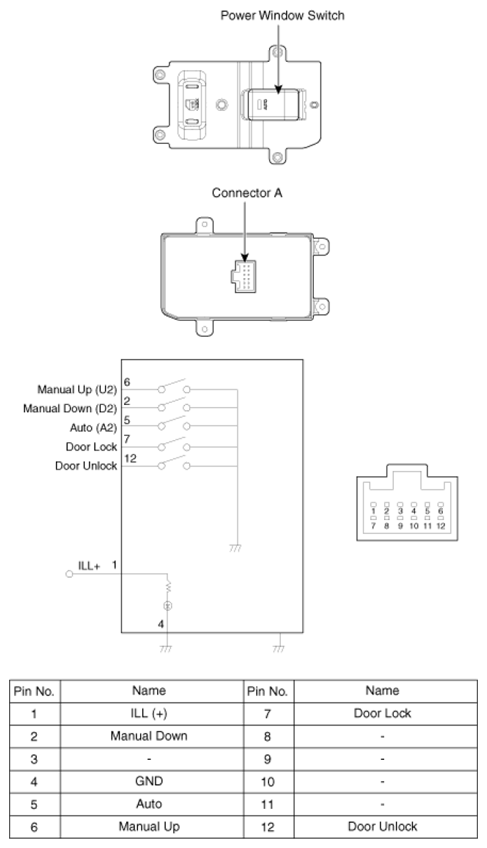

Home >> Hyundai >> 2014 >> Genesis Coupe 3.8 R-Spec, Automatic Trans >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows >> Power Window Switch >> Schematic Diagrams >> Circuit Diagram >> Assist Power Window Switch
