Assist Handle Replacement

NOTE:
  • Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
  • Put on gloves to protect your hands.
  1. Remove the covers (A) and screws, then remove the assist handle (B).

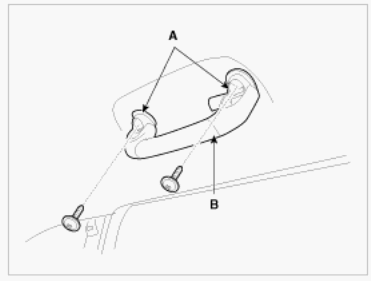

    Fig 1: Identifying Assist Handle, Covers & Screws
    G00538579Courtesy of HYUNDAI MOTOR CO.
  2. Installation is the reverse of removal.
