Repair Procedures: Removal

  1. Disconnect (-) terminal from the battery.
  2. Remove the under cover (A).
    Fig 1: Identifying Under Cover (3.8L)
    G08834306Courtesy of HYUNDAI MOTOR AMERICA

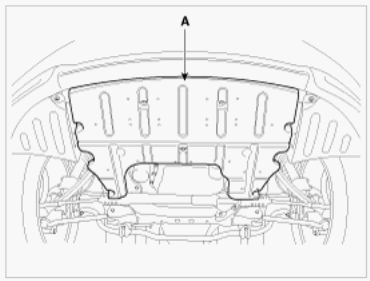

    Fig 2: Identifying Under Cover (2.0L)
    G00540609Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the stay (A). (3.8L)

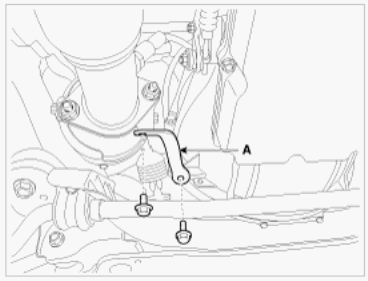

    Fig 3: Identifying Stay
    G00540599Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the front stabilizer bar (A).

    (Refer to FRONT STABILIZER BAR ).

    Fig 4: Identifying Front Stabilizer Bar
    G08834307Courtesy of HYUNDAI MOTOR AMERICA
  5. Disconnect the ground wire (A) by removing the bolt.
    Fig 5: Identifying Ground Wire
    G08834308Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the propeller shaft assembly (A).

    (Refer to PROPELLER SHAFT ).

  7. Disconnect the inhibitor connector (B) and then remove the shift cable (A) by removing nut (C).

    Tightening torque: 13.7 ~ 17.7 N.m (1.4 ~ 1.8 kgf.m, 10.1 ~ 13.0 lb-ft)

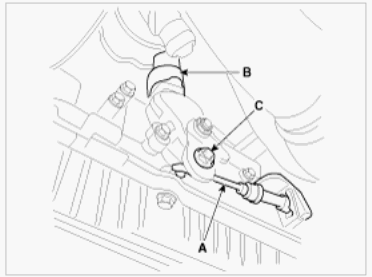

    Fig 6: Identifying Inhibitor Connector, Shift Cable & Nut
    G00540600Courtesy of HYUNDAI MOTOR AMERICA
  8. Disconnect the oxygen sensor (A) and then remove the wiring bracket (B, C). (3.8L)

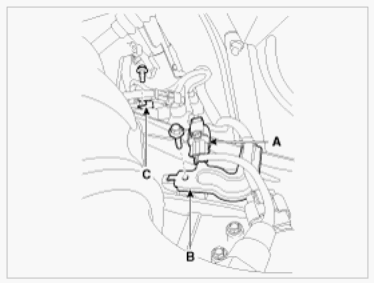

    Fig 7: Identifying Oxygen Sensor Connector & Wiring Bracket
    G00540601Courtesy of HYUNDAI MOTOR AMERICA
  9. Remove the CKP sensor (A).

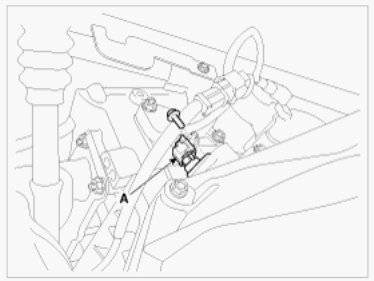

    Fig 8: Identifying CKP Sensor (3.8L)
    G00540602Courtesy of HYUNDAI MOTOR AMERICA

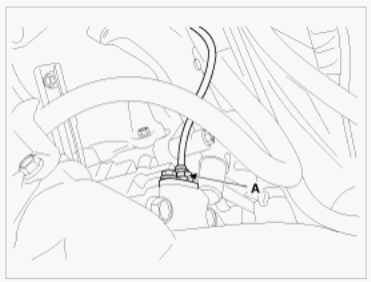

    Fig 9: Identifying CKP Sensor (2.0L)
    G00540610Courtesy of HYUNDAI MOTOR AMERICA
  10. Disconnect the solenoid valve connector (A).

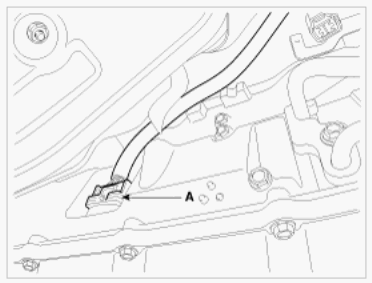

    Fig 10: Identifying Solenoid Valve Connector
    G00540603Courtesy of HYUNDAI MOTOR AMERICA
  11. Disconnect the oxygen sensor (A). (3.8L)

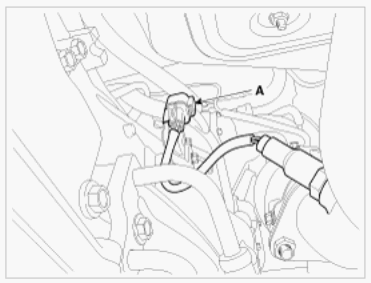

    Fig 11: Identifying Oxygen Sensor
    G00540604Courtesy of HYUNDAI MOTOR AMERICA
  12. Remove the oxygen sensor (A) from the bracket (B) and then remove the bracket (C). (3.8L)

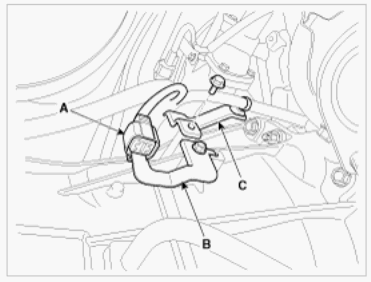

    Fig 12: Identifying Oxygen Sensor & Bracket
    G00540605Courtesy of HYUNDAI MOTOR AMERICA
  13. Remove the oil cooler tubes (A).

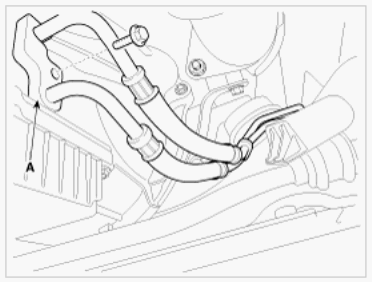

    Fig 13: Identifying Oil Cooler Tubes (3.8L)
    G00540606Courtesy of HYUNDAI MOTOR AMERICA

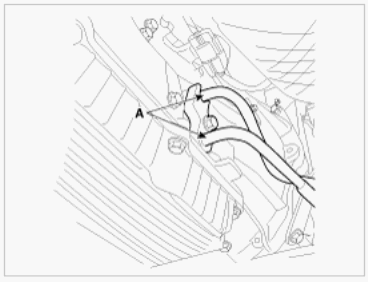

    Fig 14: Identifying Oil Cooler Tubes (2.0L)
    G00540611Courtesy of HYUNDAI MOTOR AMERICA
  14. Remove the dynamic damper (A) from the cross member. (2.0L)
    Fig 15: Identifying Dynamic Damper (2.0L Only)
    G00539250Courtesy of HYUNDAI MOTOR AMERICA
  15. Remove the dust cover (A).
    Fig 16: Identifying Dust Cover (3.8L)
    G08834315Courtesy of HYUNDAI MOTOR AMERICA
    Fig 17: Identifying Dust Cover (2.0L)
    G00540613Courtesy of HYUNDAI MOTOR AMERICA
  16. Remove the torque converter mounting bolts (A-6ea) by rotating the crank shaft.

    Tightening torque:

    45.1 ~ 52.0 N.m (4.6 ~ 5.3 kgf.m, 33.3 ~ 38.3 lb-ft)

    Fig 18: Identifying Torque Converter Mounting Bolts (3.8L)
    G08834316Courtesy of HYUNDAI MOTOR AMERICA
    Fig 19: Identifying Torque Converter Mounting Bolts (2.0L)
    G00540614Courtesy of HYUNDAI MOTOR AMERICA
  17. Using a jack support the transmission assembly.
  18. Remove the mounting bolts (A-4ea) lower in the engine side.

    Tightening torque:

    (A) 42.2 ~ 48.1 N.m (4.3 ~ 4.9 kgf.m, 31.1 ~ 35.4 lb-ft)

    (B) 34.3 ~ 46.1 N.m (3.5 ~ 4.7 kgf.m, 25.3 ~ 34.0 lb-ft) (2.0L)

    Fig 20: Identifying Lower Engine Side Mounting Bolts (3.8L)
    G08834317Courtesy of HYUNDAI MOTOR AMERICA

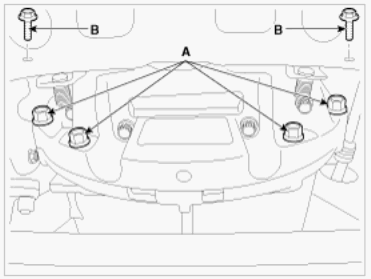

    Fig 21: Identifying Lower Engine Side Mounting Bolts (2.0L)
    G00540615Courtesy of HYUNDAI MOTOR AMERICA
  19. Remove the cross member (A) by removing bolts.

    Tightening torque: 49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)

    Fig 22: Identifying Cross Member And Mounting Bolts (3.8L)
    G08834319Courtesy of HYUNDAI MOTOR AMERICA

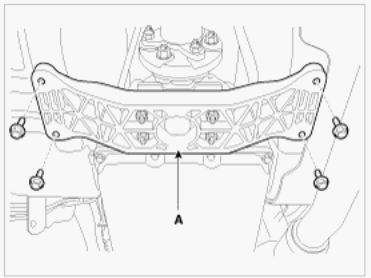

    Fig 23: Identifying Cross Member And Mounting Bolts (2.0L)
    G00540616Courtesy of HYUNDAI MOTOR AMERICA
  20. Remove the starter motor mounting bolts (A) and nut (3.8L) (B).
    NOTE: (3.8L) Before removing one mounting bolt on the transmission side and the other bolt for the starter motor, remove the cross member and lower the transmission assembly.

    Tightening torque:

    (A) 50 ~ 65 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)

    (B) 42.2 ~ 53.9 N.m (4.3 ~ 5.5 kgf.m, 31.1 ~ 39.8 lb-ft) (3.8L)

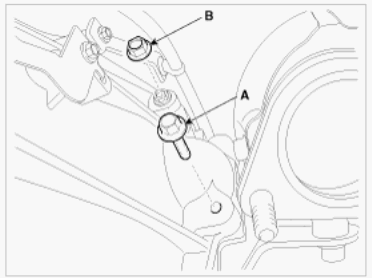

    Fig 24: Identifying Starter Motor Mounting Bolts (3.8L)
    G00540607Courtesy of HYUNDAI MOTOR AMERICA

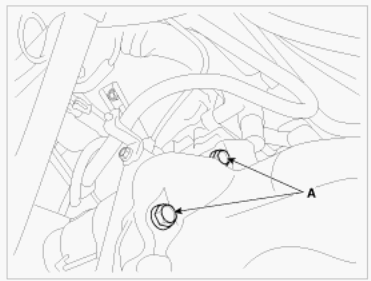

    Fig 25: Identifying Starter Motor Mounting Bolts (2.0L)
    G00540617Courtesy of HYUNDAI MOTOR AMERICA
  21. Remove the mounting bolts (A-3 ea, B-1ea) on the transmission side.

    Tightening torque: (3.8L)

    1. 65 ~ 85 N.m (6.5 ~ 8.5 kgf.m, 47.0 ~ 61.5 lb-ft)
    2. 35 ~ 47 N.m (3.5 ~ 4.7 kgf.m, 25.3 ~ 34.0 lb-ft)

    Tightening torque: (2.0L)

    1. 42.2 ~ 53.9 N.m (4.3 ~ 5.5 kgf.m, 31.1 ~ 39.8 lb-ft)

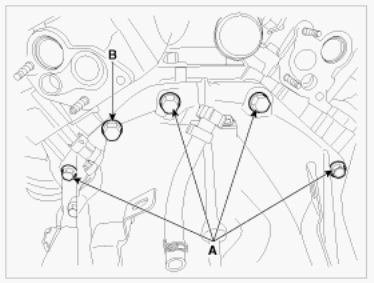

    Fig 26: Identifying Transmission Side Mounting Bolts (3.8L)
    G00540608Courtesy of HYUNDAI MOTOR AMERICA
    Fig 27: Identifying Transmission Side Mounting Bolts (2.0L)
    G00540618Courtesy of HYUNDAI MOTOR AMERICA
  22. Remove the transmission assembly by lowering the supporting jack.
    CAUTION: Be careful not to damage tubes, hoses or wire.
