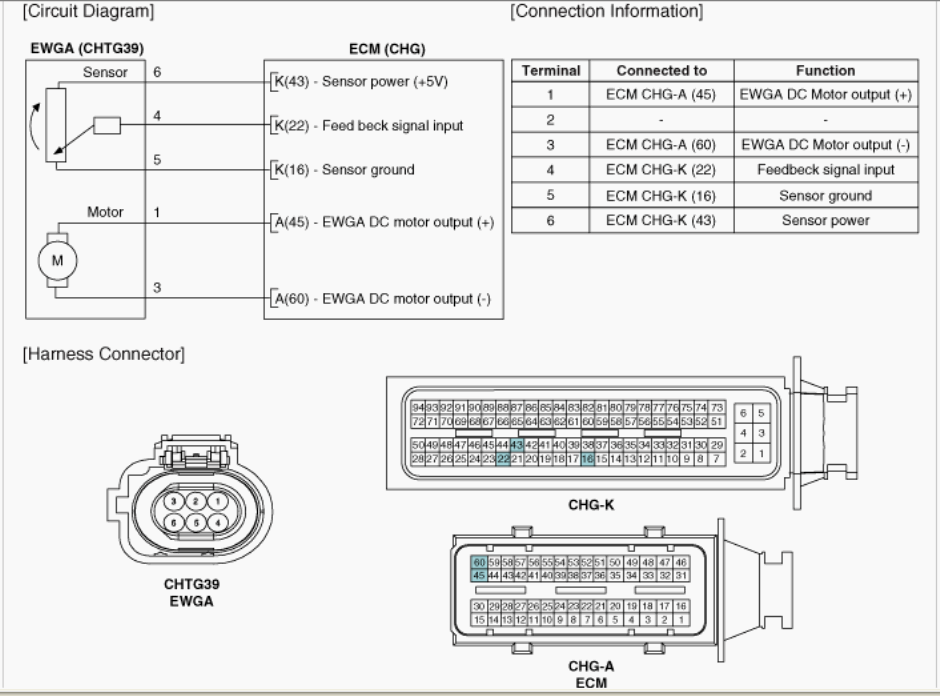

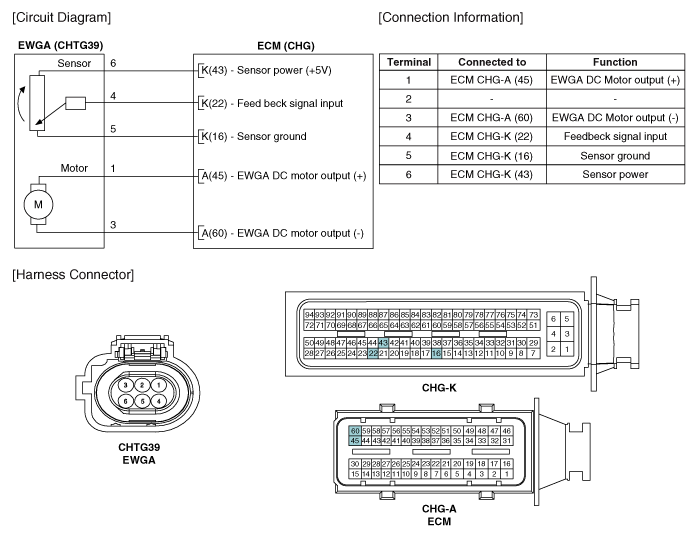

Home >> Hyundai >> 2014 >> Genesis Coupe 2.0T, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L >> Electric WGT Control Actuator >> Schematic Diagrams >> Circuit Diagram
