Repair Procedures: Replacement: Removal

NOTE:
  • Put on gloves to protect your hands.
  • Use seat covers to avoid damaging any surfaces.
  1. Remove the front pillar trim. (Refer to "INTERIOR TRIM ")
  2. Remove the inside rear view mirror. (Refer to "ELECTRO CHROMATIC INSIDE REAR VIEW MIRROR ")
  3. Remove the rain sensor.
  4. Remove the auto defog sensor.
  5. Remove the windshield wiper arm. (Refer to "COWL TOP COVER ")
  6. Remove the cowl top cover. (Refer to "COWL TOP COVER ")
  7. Disconnect the windshield glass deicer connector.
  8. Remove the windshield molding (A) from the edge of the windshield glass (B). If necessary, cut the windshield molding with a utility knife.

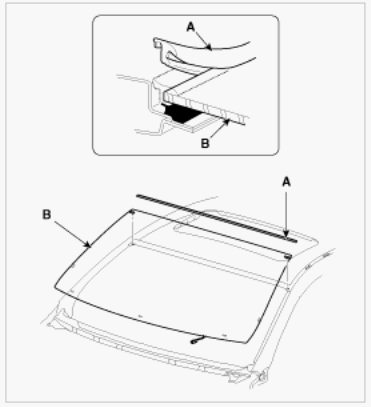

    Fig 1: Removing Windshield Molding
    G00538597Courtesy of HYUNDAI MOTOR CO.
  9. Cut out the windshield sealant using the sealant cutting tool (A) (09861-31100).
    Fig 2: Cutting Out Windshield Sealant
    G06513527Courtesy of HYUNDAI MOTOR CO.
    CAUTION:
    • Do not scrape down to the painted surface of the body; damaged paint will interfere with proper bonding.
    • Remove the rubber dam and fasteners from the body.
    • Mask off surrounding surfaces before painting.
  10. Remove the windshield (B) carefully using the glass holder (A).
    Fig 3: Removing Windshield
    G06513528Courtesy of HYUNDAI MOTOR CO.
