Monitor Assembly Replacement

NOTE:
  • When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Take care not to scratch the body surface.
  • Put on gloves to protect your hands.
  1. Remove the center fascia upper panel (A).
    Fig 1: Identifying Center Fascia Upper Panel
    G00538566Courtesy of HYUNDAI MOTOR CO.

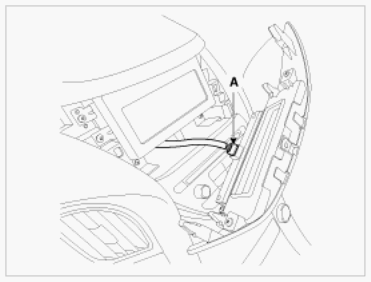

  2. Disconnect the connector (A.
    Fig 2: Identifying Connector
    G00538567Courtesy of HYUNDAI MOTOR CO.
  3. After loosening the mounting screws, remove the monitor assembly (A).
    Fig 3: Identifying Monitor Assembly & Mounting Screws
    G00538571Courtesy of HYUNDAI MOTOR CO.
  4. Disconnect the monitor connector (A).
    Fig 4: Identifying Connector
    G00538572Courtesy of HYUNDAI MOTOR CO.
NOTE:
  • Make sure the connector is plugged in properly.
  • Replace any damaged clips.
