Audio Unit Assembly Replacement

Remove the center fascia panel. Refer to Center Fascia Panel Replacement .

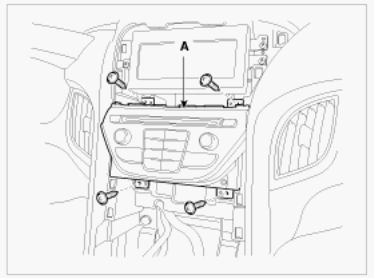

After loosening the mounting screws, remove the audio assembly (A).

Fig 1: Identifying Audio Assembly & Mounting Screws
Courtesy of HYUNDAI MOTOR CO.

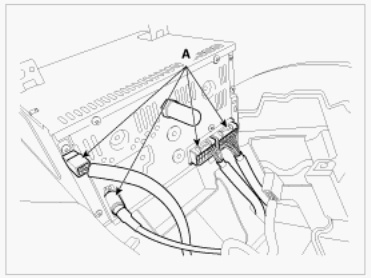

Disconnect the audio unit connectors (A).

Fig 2: Identifying Connectors
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Make sure the connectors are plugged in properly.
- Replace any damaged clips.
