Components and Component Locations: Components

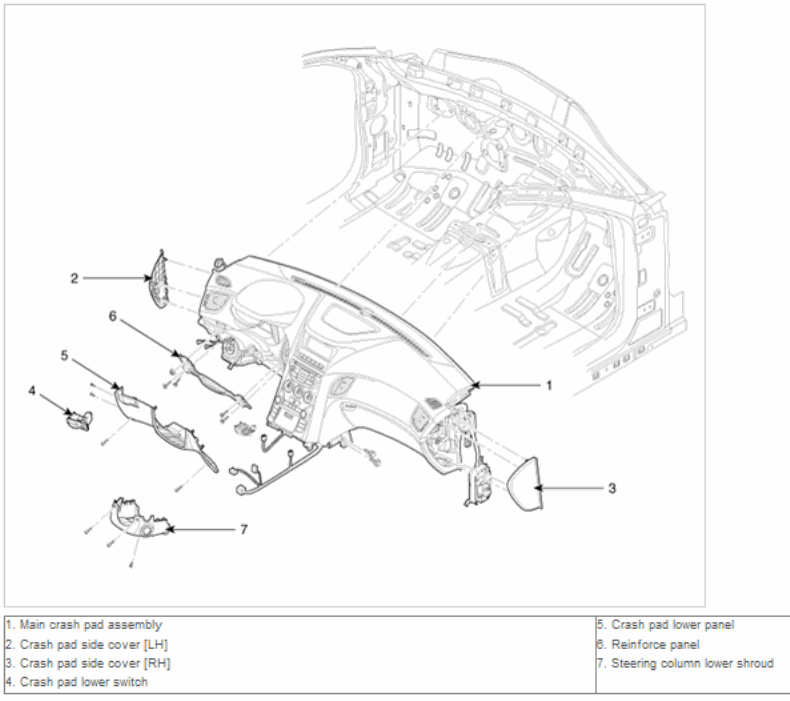

Fig 1: Identifying Crash Pad Components (1 Of 2)
G00538564Courtesy of HYUNDAI MOTOR CO.

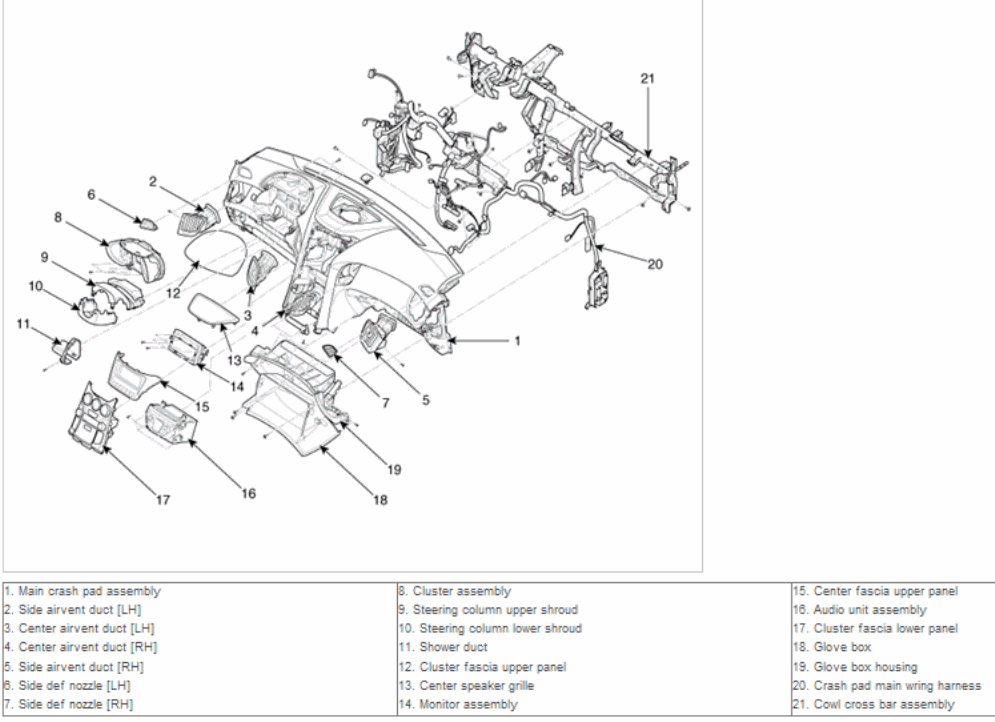

Fig 2: Identifying Crash Pad Components (2 Of 2)
G00538565Courtesy of HYUNDAI MOTOR CO.
