Floor Console Replacement

NOTE:

When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

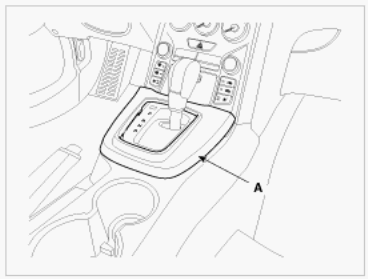

Using a screwdriver or remover, remove the console upper cover (A).

Fig 1: Removing Console Side Cover
Courtesy of HYUNDAI MOTOR CO.
Using a screwdriver or remover, remove the parking brake cover (A).

Fig 2: Identifying Parking Brake Cover
Courtesy of HYUNDAI MOTOR CO.
Remove the console tray mat (A).

Fig 3: Identifying Console Tray Mat
Courtesy of HYUNDAI MOTOR CO.

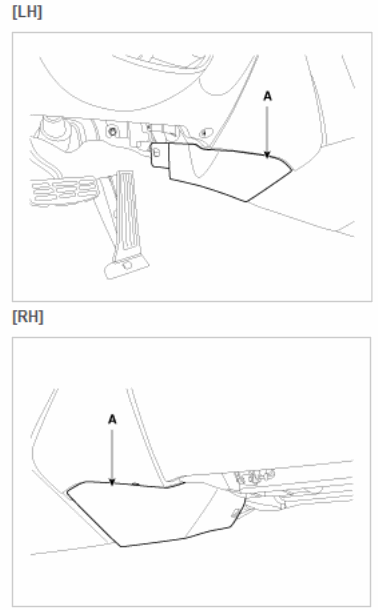

Remove the console extension side covers (A).

Fig 4: Identifying Console Extension Side Covers
Courtesy of HYUNDAI MOTOR CO.

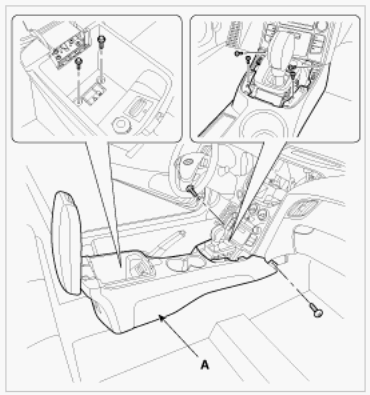

After loosening the mounting screws and bolts, then remove the floor console assembly (A).

Fig 5: Identifying Floor Console Assembly
Courtesy of HYUNDAI MOTOR CO.

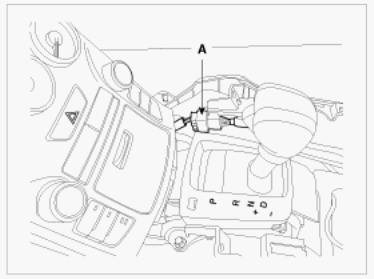

Disconnect the floor console main connector (A).

Fig 6: Identifying Floor Console Main Connector
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Make sure the connectors are connected in properly.
- Replace any damaged clips.
