Home >> Hyundai >> 2014 >> Genesis Coupe 2.0T, Automatic Trans >> Repair and Diagnosis >> Body & Frame >> Windows >> Interior >> Console >> Components and Component Locations >> Components

Components and Component Locations: Components

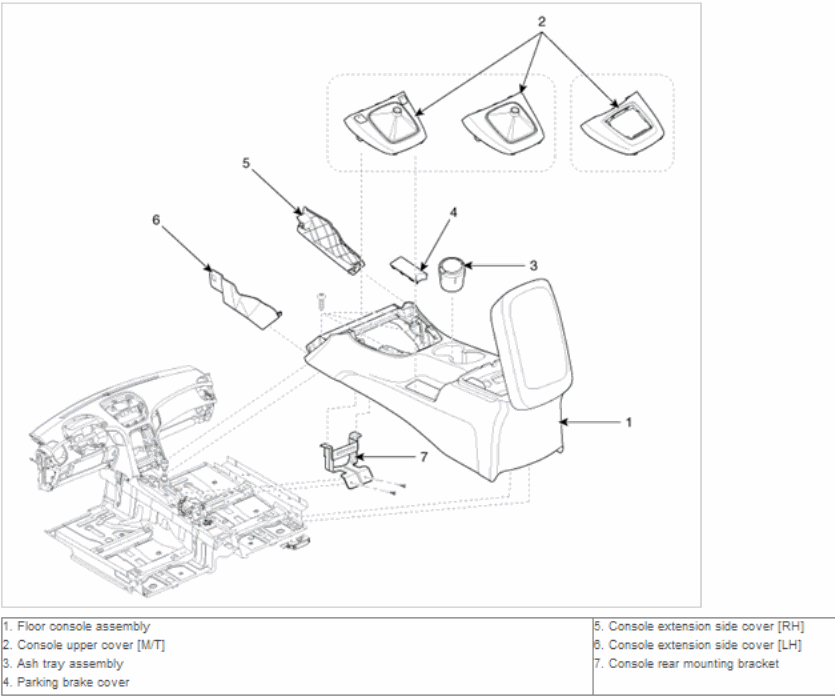

Fig 1: Identifying Console Components (M/T)

G00538557

Courtesy of HYUNDAI MOTOR CO.

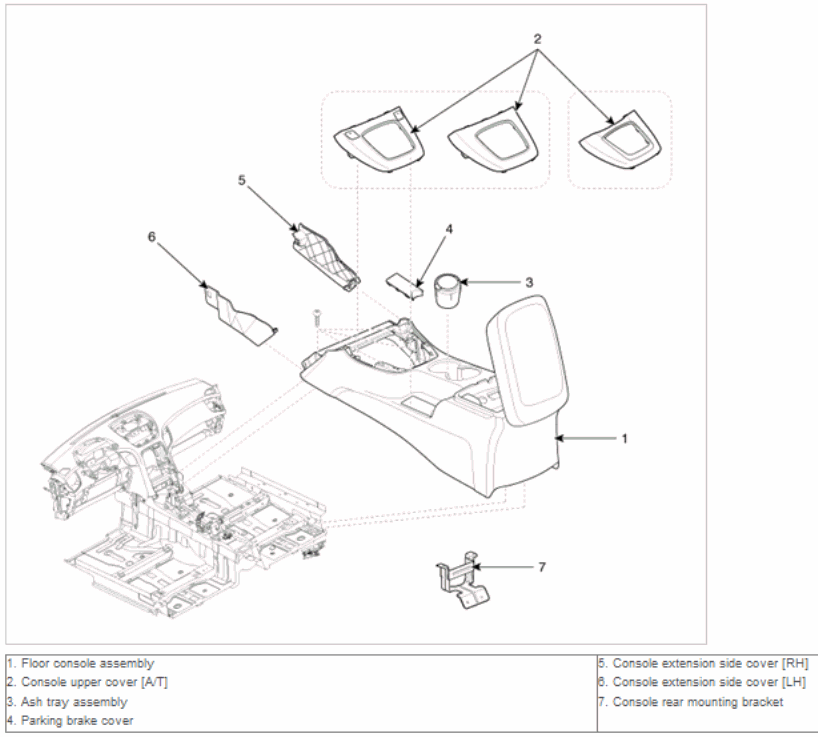

Fig 2: Identifying Console Components (A/T)

G00538558

Courtesy of HYUNDAI MOTOR CO.
