Front Body A

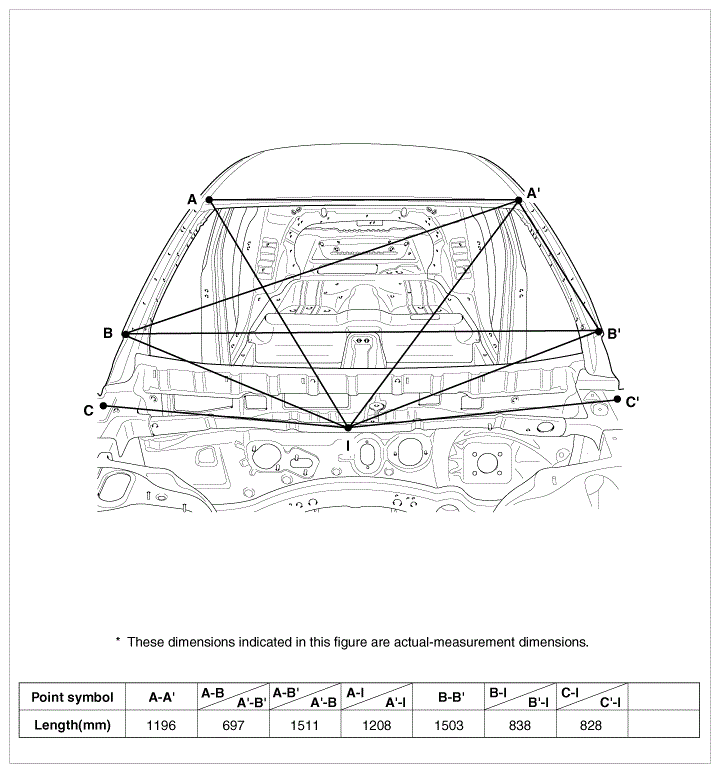

Fig 1: Identifying Front Body A Actual-Measurement Dimensions

G08834873

Courtesy of HYUNDAI MOTOR AMERICA

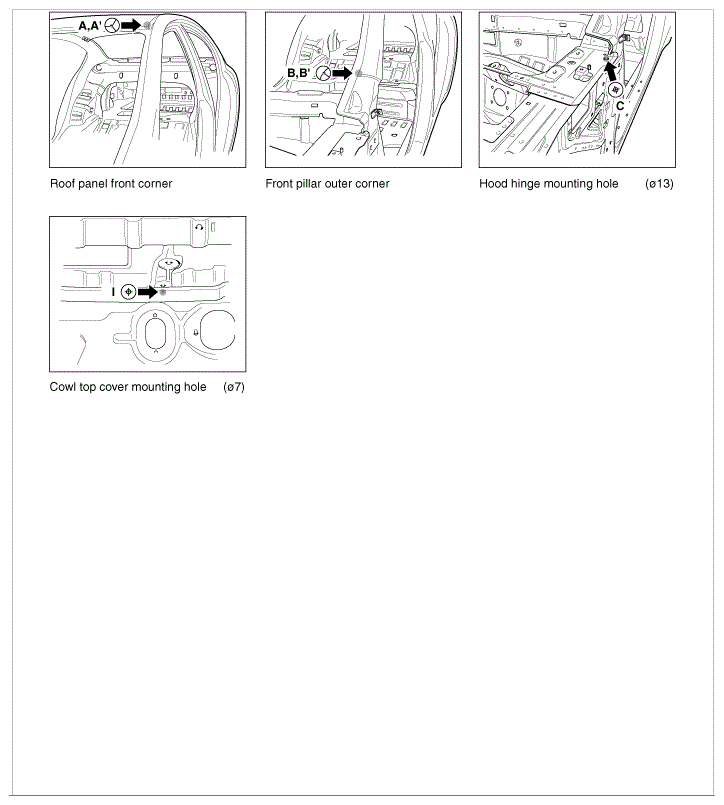

Fig 2: Locating Front Body A Dimension Measurement Points

G08834874

Courtesy of HYUNDAI MOTOR AMERICA
