Column Switch (Switch Body Part) Continuity Check

WARNING: This page is about a different car, the 2014 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.

Remove the lighting switch and wiper/washer switch. (Refer to < LIGHTING SWITCH AND WIPER/WASHER SWITCH > ).
Check that the continuity is present for the same terminal numbers (No. 2-11) of the column switch body connectors that remain on the steering column.

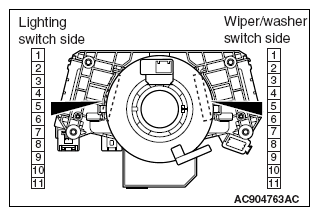

Fig 1: Identifying Lighting Switch And Wiper/Washer Switch Connectors
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Column switch body	Terminal number	Normal condition
Lighting switch side connector Wiper/washer switch side connector	2 - 2 3 - 3 4 - 4 5 - 5 6 - 6 7 - 7 8 - 8 9 - 9 10 - 10 11 - 11	Continuity exists (2 ohms or less)
