Continuity Check For Hazard Warning Light Switch

WARNING: This page is about a different car, the 2014 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.

Switch position	Measured terminals	Normal condition
OFF	2 - 5	No continuity
ON	2 - 5	Continuity exists (2 ohms or less)

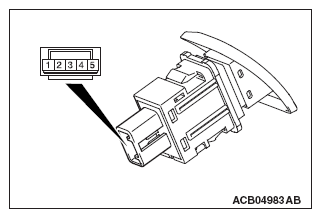

Fig 1: Identifying Hazard Warning Light Switch Connector Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
