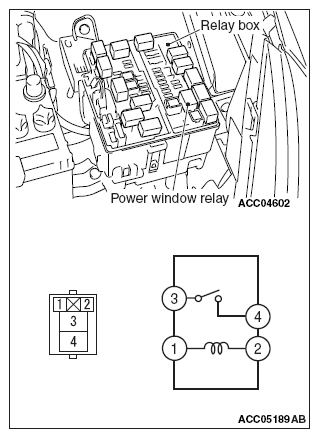

Check The Power Window Relay
WARNING: This page is about a different car, the 2014 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.
| Battery voltage |
Terminal number |
Normal value |
| No current supply |
3 - 4 |
No continuity |
| With current supply [terminal 1 (+) - terminal 2 (-)] |
3 - 4 |
Continuity exists (2 ohms or less). |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
