Selector "P" Position-Linked Door Unlocking Function

WARNING: This page is about a different car, the 2014 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.

When the selector lever is shifted to the "P" (parking) position with the ignition switch turned ON, all the doors (including the liftgate) will be unlocked automatically, improving passengers' convenience for getting out. Using a customization function, the selector "P" position-linked door unlocking function can be switched (Refer to CUSTOMIZATION FUNCTION  ).

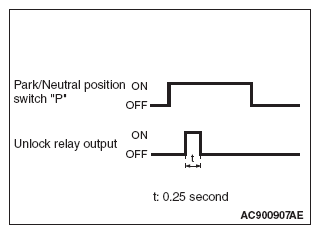

Fig 1: P - Position-Linked Door Signal Pattern
G09631890Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

When the selector lever is shifted to the P position with the ignition switch turned ON, the transmission range switch "P" turns ON, ETACS-ECU turns the unlock relay output ON for 0.25 second to unlock all the doors (including the liftgate).
