Removal And Installation: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

The parts indicated by ^*1 are the nut with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.

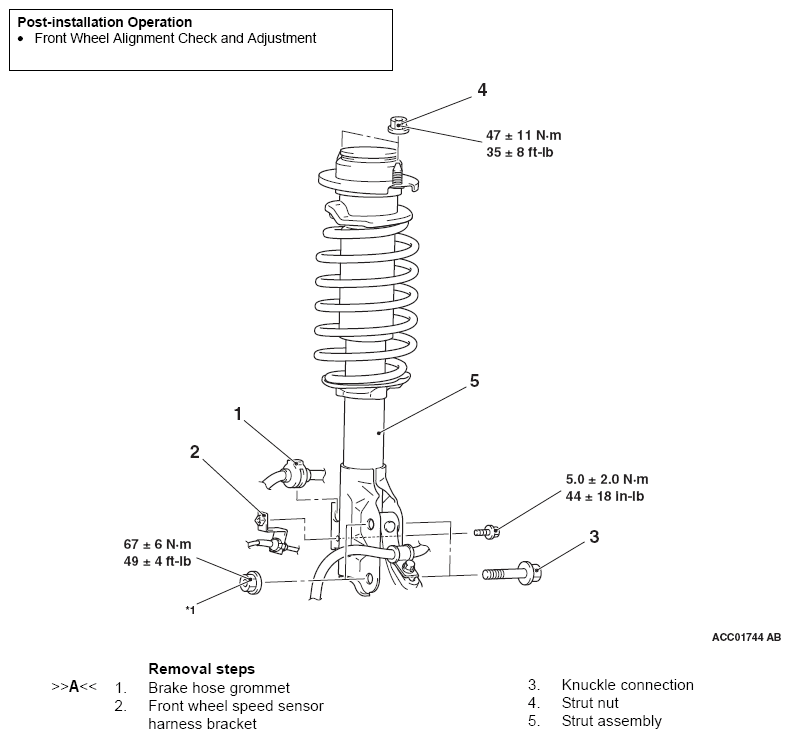

Fig 1: Exploded View Of Strut Assembly With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
