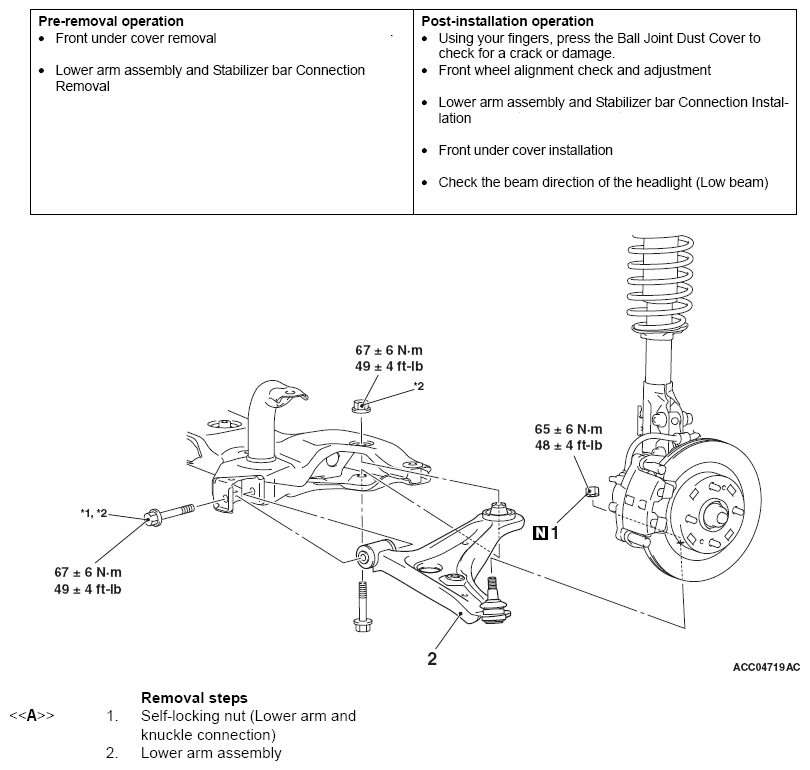

Removal And Installation: Notes
WARNING: This page is about a different car, the 2014 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- The parts indicated by *1 should be temporarily tightened, and then fully tightened with the vehicle standing on the ground and the curb weight condition.
- The parts indicated by *2 are the bolts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.
Required Special Tools:
- MB991897 or MB992011: Ball Joint Remover
- MB991006: preload socket
- MB990800: Ball joint remover and installer
- MB991389: Bush remover base
- MD998375: Crankshaft front oil seal installer
- MB992868: Base spacer
- MB990643: Base
