Computer Connector

WARNING: This page is about a different car, the 2014 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.

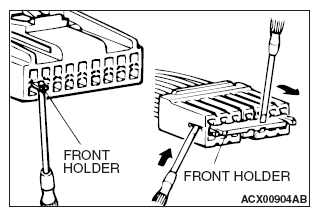

Insert a screwdriver [1.4 mm (0.06 inch) width] as illustrated in the service information, disengage the front holder, and remove it.

Fig 1: Disengaging Front Holder
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

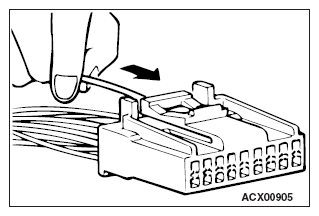

Push the harness wire of the terminal to be repaired deep into the connector from the harness side and hold it there.

Fig 2: Pushing Terminal Harness Wire Into Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

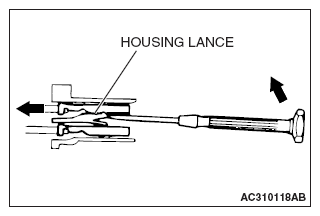

Insert the tip of the screwdriver [1.4 mm (0.06 inch) width] into the connector as illustrated in the service information, gently push the housing lance down with the tip, and pull out the terminal.

Fig 3: Inserting Screwdriver Tip Into Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

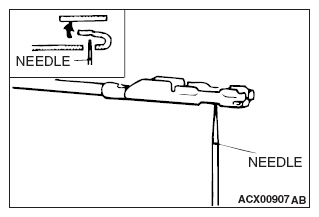

Insert a needle through the hole provided on the terminal and raise the contact point. Lightly squeeze the outer edge so the flats are parallel with the bottom.

Fig 4: Inserting Needle On Connector Terminal Hole
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
