Periodic Reminder Schedule Set

WARNING: This page is about a different car, the 2014 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.

The service reminder schedule can be changed.

NOTE: In addition to the operation of the scan tool (M.U.T.-III), the schedule can be changed by operating the meter information switch on the combination meter. Refer to Fig 1

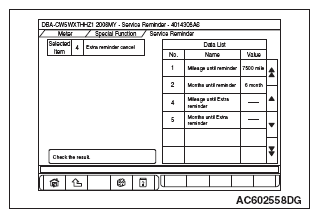

Fig 1: Display Temporary Warning Period Cancelled Screen

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

On the "Service Reminder" screen, select "5 Periodic reminder schedule set."
NOTE: The screen indicates that the current schedule (No. 7 in the data list) has been set to "Normal."

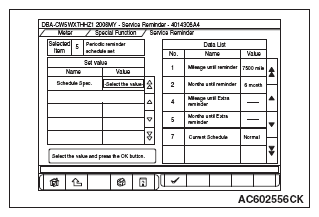

Fig 2: Display Service Reminder Screen (5 Periodic Reminder Schedule Set)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Set the schedule to be changed from "Set value."
Press the "OK" button.

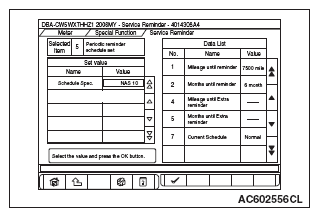

Fig 3: Display Set Value Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
The schedule is changed.
NOTE: The screen indicates that the current schedule (No. 7 in the data list) has been changed to "NAS 10."
