Optional Int Schedule Setting

WARNING: This page is about a different car, the 2014 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If the current schedule is set to the "Optional INT" by executing "5. Periodic reminder schedule set," the "set value" cannot be input. Therefore, set it to the schedule other than the "Optional INT" once, and then execute "7. Optional INT schedule setting."

In addition to the existing schedule, the optional service reminder schedule can be set.

On the "Service Reminder" screen, select "7 Optional INT schedule setting."
NOTE: The screen indicates that the optional schedule (Nos. 12 and 13 in the data list) has not been set.

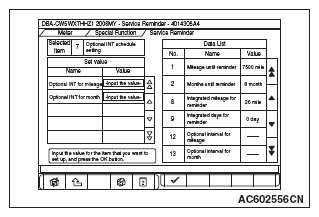

Fig 1: Display Service Reminder Screen (7 Optional INT Schedule Setting)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Set the optional schedule (distance or month) of the "Set value."
NOTE: Either input of distance or month can execute the setting.
Press the "OK" button.

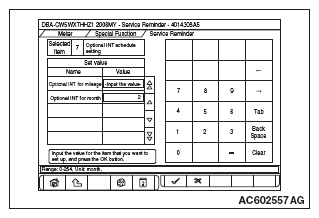

Fig 2: Display SET Value Optional Schedule Screen (Distance Or Month)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
The optional schedule is set. The set schedule becomes effective by executing "5 Periodic reminder schedule set" and setting the schedule to "Optional INT."
NOTE: The screen indicates that "2 month" has been added to the optional schedule (No. 13 in the data list). (The distance of No. 12 in the data list has not been set).

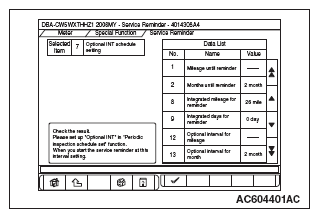

Fig 3: Display 5 Periodic Reminder Schedule Set Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
