Nominal Resistance Of The Fuel Level Sensor
WARNING: This page is about a different car, the 2014 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the fuel pump module (Refer to ON-VEHICLE SERVICE .

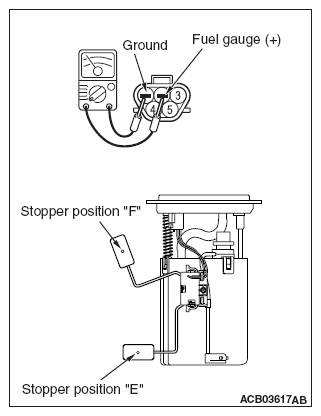

- When float of the fuel level sensor is in stopper positions F and E, ensure that resistance between the fuel level sensor terminal and ground terminal is within the standard value.FUEL LEVEL SENSOR STANDARD VALUE DESCRIPTION
Float position Gauge resistance value (ohms) Stopper position "F" 13.0 ± 1.0 Stopper position "E" 120.0 ± 1.0 - When the float is moved slowly between stopper positions "F" and "E", ensure that the resistance is smoothly changing.
