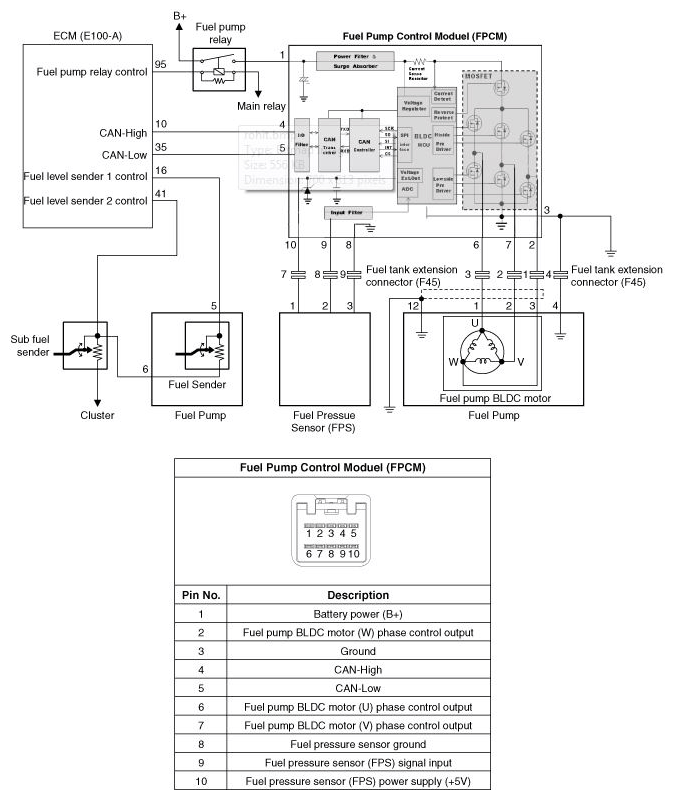

Home >> Hyundai >> 2014 >> Equus Ultimate >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Delivery System >> Fuel Pump Control Module (FPCM) >> Schematic Diagrams >> Circuit Diagram
