Description and Operation: Description

  1. Power Seat Module (PSM)
    Fig 1: Identifying Power Seat Module
    G09791500Courtesy of HYUNDAI MOTOR AMERICA
    1. Main features
      Item Description
      Installation location Lower section of the driver side seat
      Component configuration
      1. Embedded with CAN Communication IC
      2. Seat memory save and recall check buzzer embedded
      Main features
      1. Manual function (manual control through switch operation)
      2. Memory switch can store and recall seat positions for 2 drivers
      3. Out synchronization (can be activated/deactivated via USM function or scanner)
      4. Internal buzzer control by save & recall
      5. Headrest SW, slide, and recline limit switch applied
      6. B+ recall
      7. Added limit setting mode using the scanner
    2. Power seat signal flow

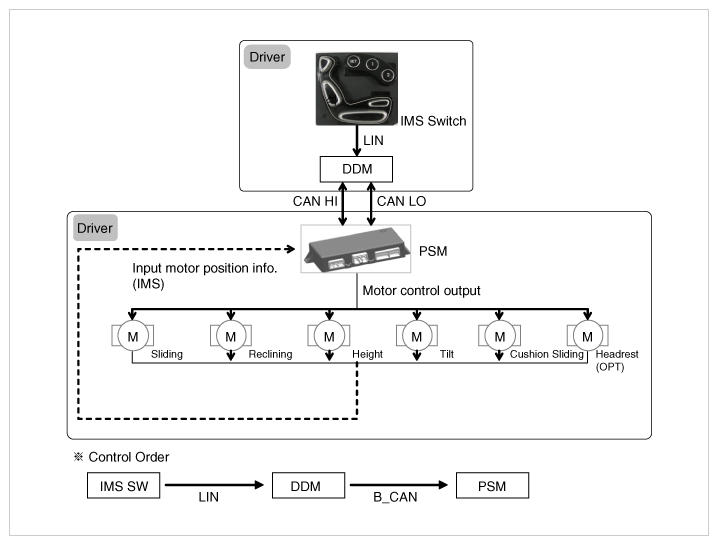

      Fig 2: Power Seat Signal Flow Diagram
      G09791501Courtesy of HYUNDAI MOTOR AMERICA
    3. For detail information about circuit diagram, refer to the POWER WINDOW SWITCH .

      (Refer to MEMORY POWER SEAT UNIT (IMS & PSM) .
