Components and Components Location: Components

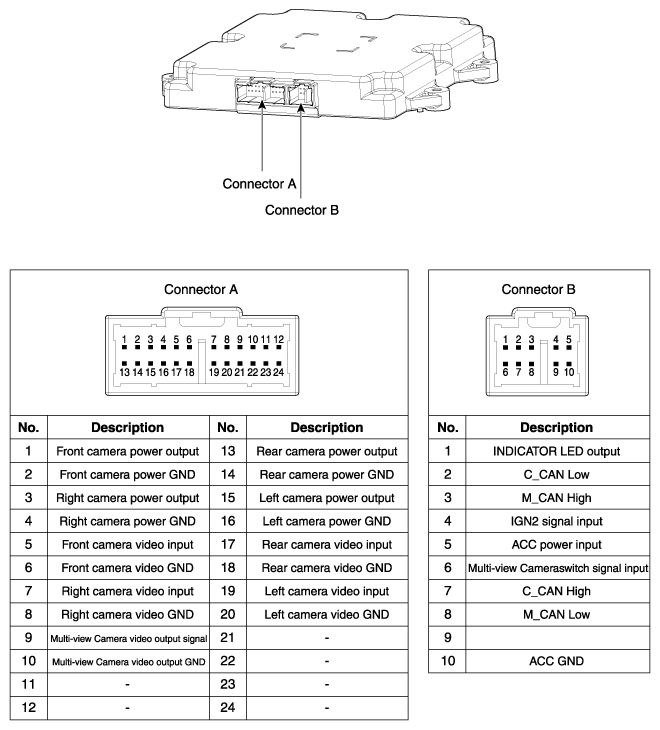

Fig 1: Identifying Multi-View Camera Unit Connector Pins

G09791433

Courtesy of HYUNDAI MOTOR AMERICA
