Components and Components Location: Components

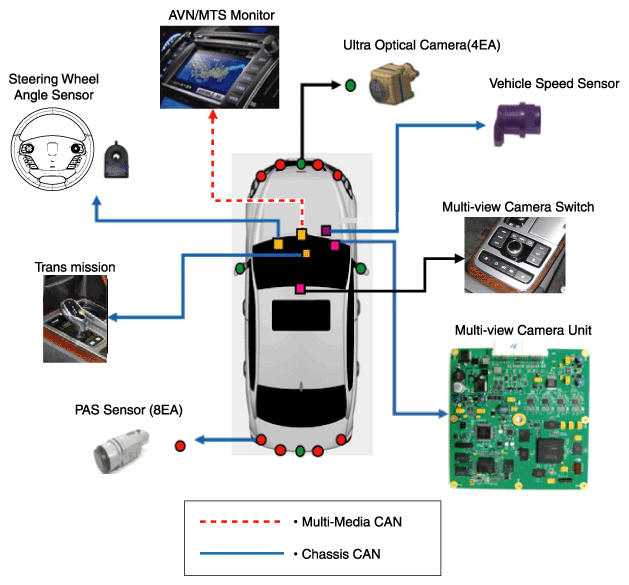

Fig 1: Multi-View Camera System Components Location

Courtesy of HYUNDAI MOTOR AMERICA

MULTI-VIEW CAMERA SYSTEM COMPONENT FUNCTIONS DESCRIPTION

No.	Components	Quantity	Major Role
1	Multi-view Camera Unit	1	Input video information from 4 channel cameras and process display Vehicle communication (CAN) and system control Screen output in 8 view modes
2	Ultra optical camera (190 degrees)	4	Record vehicle's surrounding area
3	AVN Head Unit	1	Provide driver with video via Multi-view Camera ECM output Send user input data to Multi-view Camera ECU
4	Multi-view Camera Switch	1	Input video feed in Front Mode
