Circuit Diagrams

  1. Air compressor connector
    2. Fig 1: Identifying Air Compressor Connectors
    G00551205
  2. Air compressor terminal function

    [Motor power]

    Terminal Function
    1 Motor power
    2 Motor ground

    [Solenoid valve]

    Terminal Function
    1 Solenoid valve control
    2 Solenoid valve power

    [Temperature sensor]

    Terminal Function
    1 Temperature sensor power
    2 Temperature sensor signal

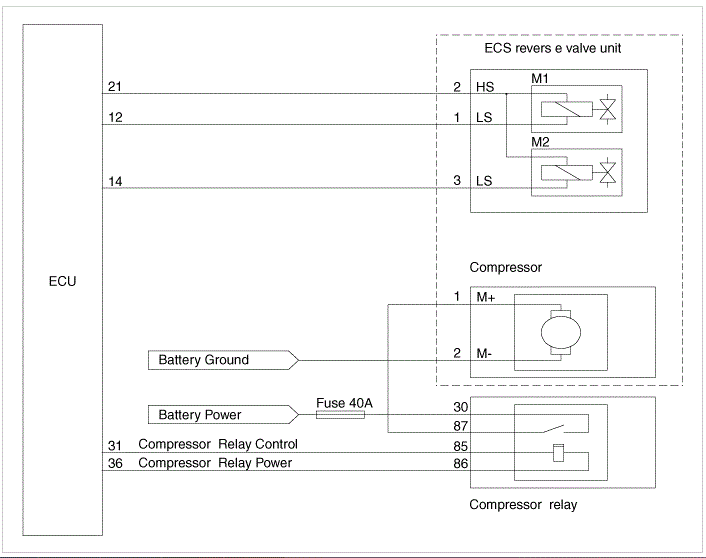

  3. Circuit diagram
    4. Fig 2: Identifying Compressor System Diagram
    G00551206
