Home >> Hyundai >> 2014 >> Equus Signature >> Repair and Diagnosis >> Suspension >> Suspension Control Systems >> Air Suspension System >> Air Spring >> Components and Components Location >> Components

Components and Components Location: Components

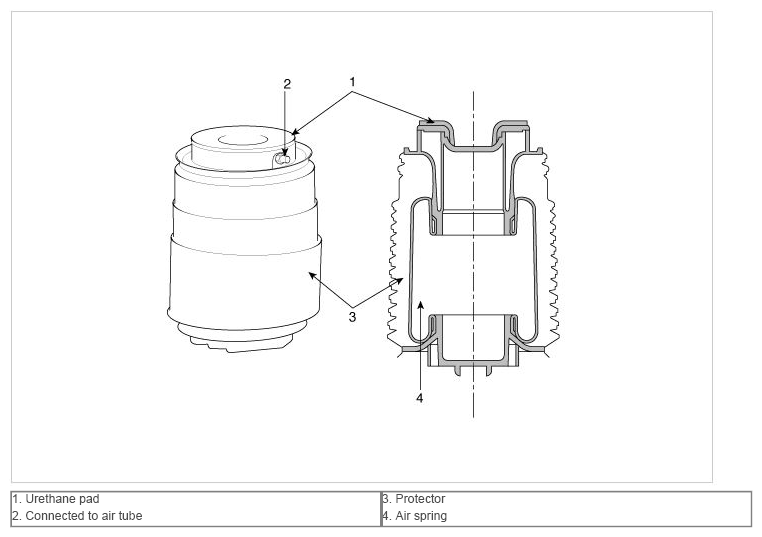

Fig 1: Air Spring Components Location
G09789895Courtesy of HYUNDAI MOTOR AMERICA
