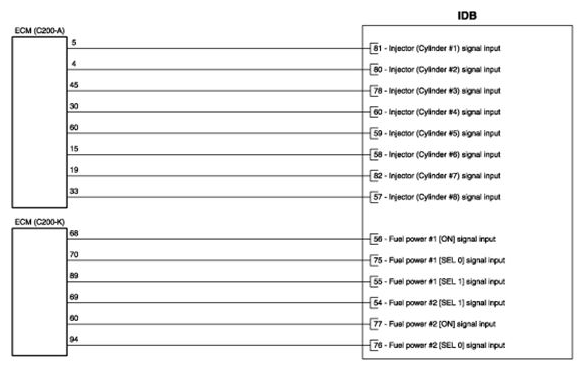

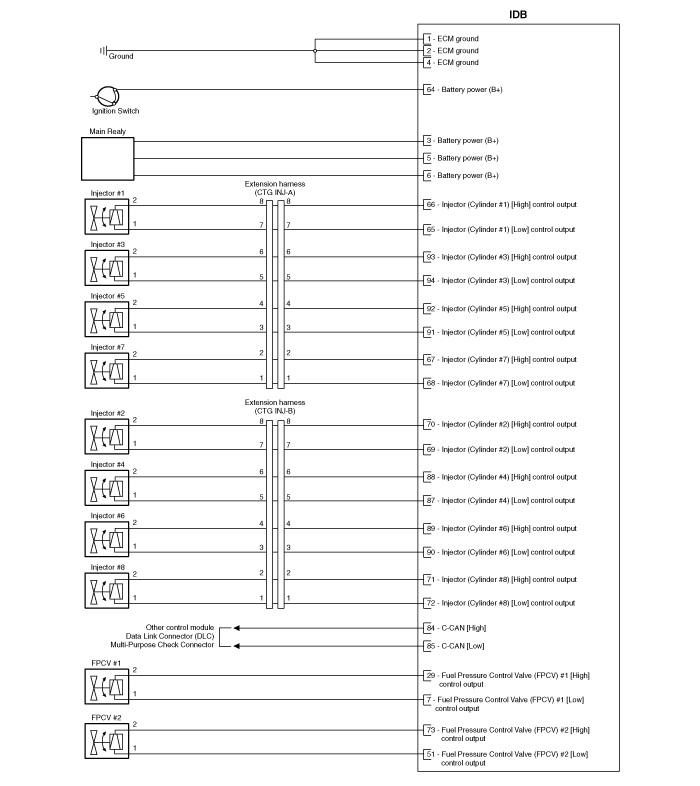

Home >> Hyundai >> 2014 >> Equus Signature >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Injector Drive Box (IDB) >> Schematic Diagrams >> Circuit Diagram
