Bleeding of Brake System

This procedure should be followed to ensure adequate bleeding of air and filling of the ABS unit, brake lines and master cylinder with brake fluid.

1. Remove the reservoir cap and fill the brake reservoir with brake fluid.
   CAUTION: If there is any brake fluid on any painted surface, wash it off immediately.
   NOTE: When pressure bleeding, do not depress the brake pedal.
   Recommended fluid........ DOT3 or DOT4
2. Connect a clear plastic tube to the wheel cylinder bleeder plug and insert the other end of the tube into a half filled clear plastic bottle.
3. Connect the GDS to the data link connector located underneath the dash panel.
4. Select and operate according to the instructions on the GDS screen.
   CAUTION: You must obey the maximum operating time of the ESP motor with the GDS to prevent the motor pump from burning.
   1. Select vehicle name.
   2. Select Anti-Lock Brake system.
   3. Select HCU air bleeding mode.

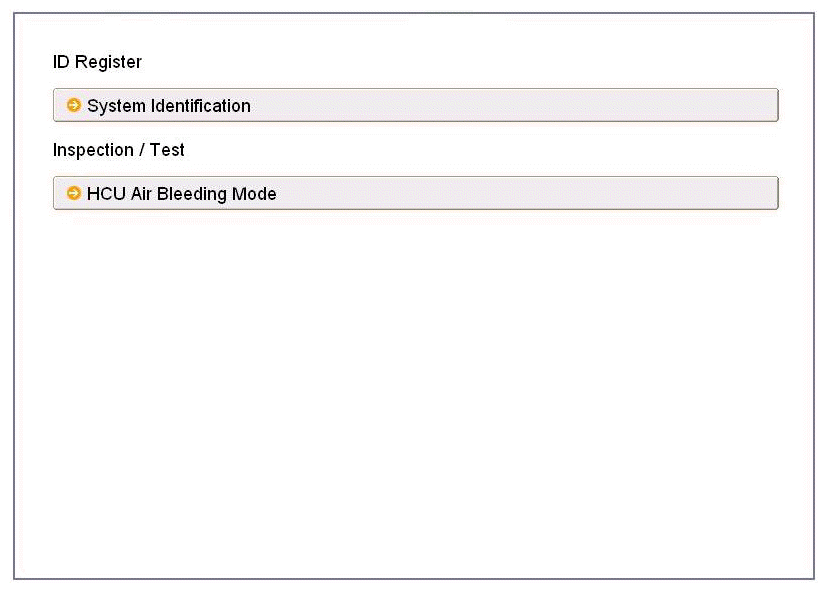

      Fig 1: Display - System Identification Screen

      Courtesy of HYUNDAI MOTOR AMERICA
   4. Press "OK" to operate motor pump and solenoid valve.

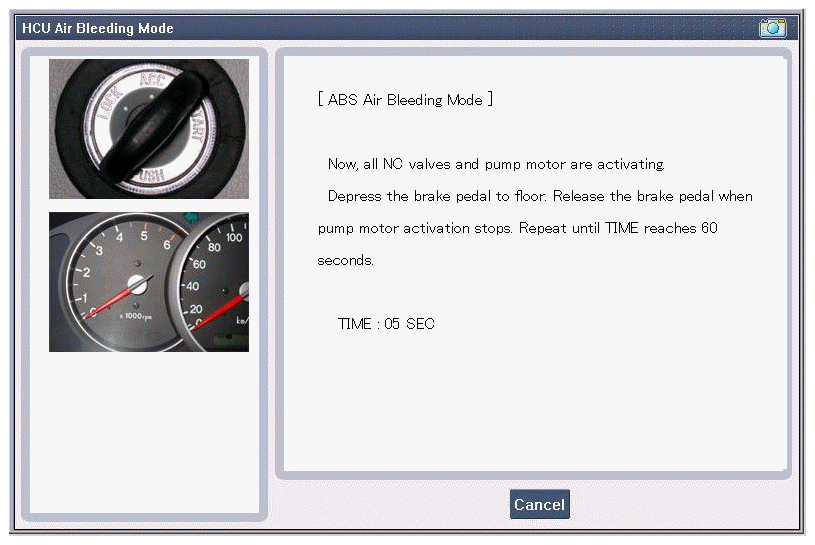

      Fig 2: Display - Anti-Lock Brake System Air Bleeding Mode Selection Screen

      Courtesy of HYUNDAI MOTOR AMERICA
   5. Wait 60 sec. before operating the air bleeding.

      (If not, you may damage the motor.)

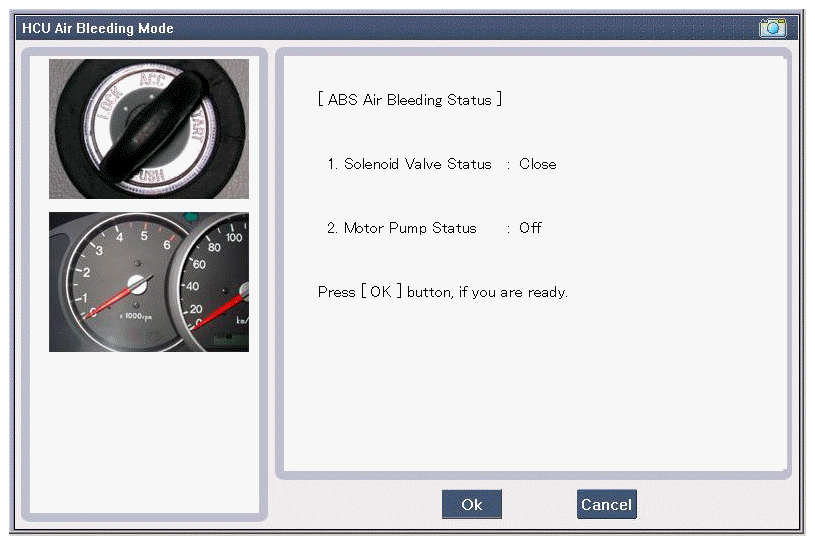

      Fig 3: Display - Anti-Lock Brake System Air Bleeding Mode Confirmation Screen

      Courtesy of HYUNDAI MOTOR AMERICA
   6. Perform the air bleeding.

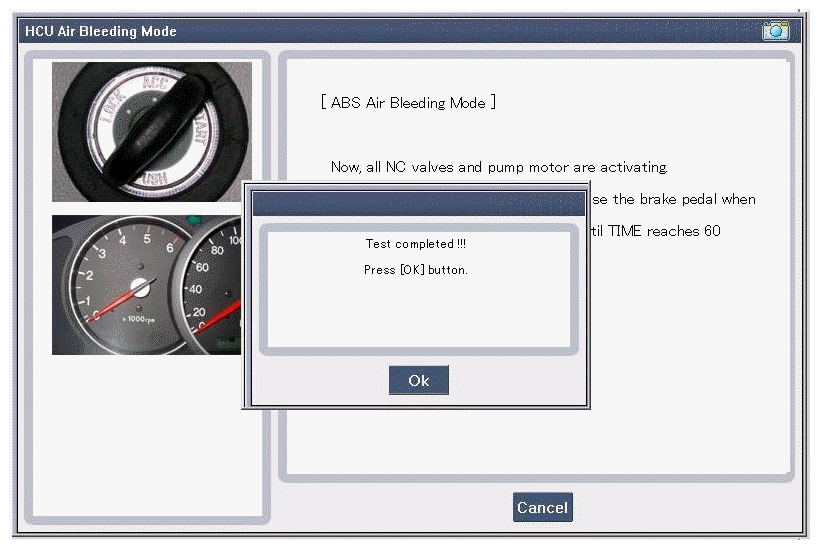

      Fig 4: Display - Anti-Lock Brake System Air Bleeding Mode Completion Screen

      Courtesy of HYUNDAI MOTOR AMERICA
5. Pump the brake pedal several times, and then loosen the bleeder screw until fluid starts to run out without bubbles. Then close the bleeder screw (A).

   [Front]

   Fig 5: Identifying Bleeder Screw - Front

   Courtesy of HYUNDAI MOTOR AMERICA

   [Rear]

   Fig 6: Identifying Bleeder Screw - Rear

   Courtesy of HYUNDAI MOTOR AMERICA
6. Repeat step  5 until there are no more bubbles in the fluid for each wheel.
   Fig 7: Fluid Bleeding Sequence

   Courtesy of HYUNDAI MOTOR AMERICA
7. Tighten the bleeder screw.

   Bleed screw tightening torque:

   6.9 ~ 12.7 N.m (0.7 ~ 1.3 kgf.m, 5.1~ 9.4 lb-ft)
