[Rear Console Armrest]

CAUTION:
  • Put on gloves to protect your hands.
NOTE:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the rear seat cushion assembly.

    (Refer to "REAR SEAT ASSEMBLY ")

  2. Remove the rear seat back cover assembly.

    (Refer to "REAR SEAT ASSEMBLY ")

  3. Disconnect the connectors (A).
  4. Remove the caps (B).
  5. After loosening the mounting bolts, remove the rear tower console complete assembly (C).

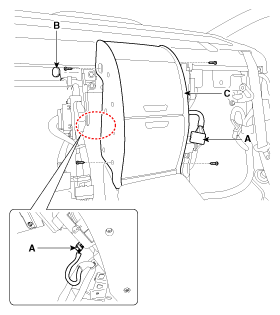

    Fig 1: Identifying Connectors And Caps
    G09790541Courtesy of HYUNDAI MOTOR AMERICA
  6. Loosen the mounting bolts, remove the rear console armrest (A).
    Fig 2: Identifying Rear Console Armrest
    G09790556Courtesy of HYUNDAI MOTOR AMERICA
  7. Install in the reverse order of removal.

    Information

    • Make sure the connector is connected properly.
    • Replace any damage clips.
