[Front Console Armrest]

CAUTION:

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

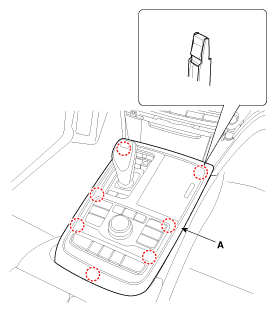

Using a screwdriver or remover, remove the front console upper complete (A).

Fig 1: Identifying Front Console Upper Complete
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connectors (A).

Fig 2: Identifying Front Console Upper Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Remove the console armrest tray (A).

Fig 3: Identifying Console Armrest Tray
Courtesy of HYUNDAI MOTOR AMERICA
Remove the console armrest service cover (A).

Fig 4: Identifying Console Armrest Service Cover
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the mounting bolts, remove the console armrest (A).

Fig 5: Identifying Console Armrest
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connectors (A).
Remove the front console armrest (B).

Fig 6: Identifying Front Console Armrest And Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Replace any damage clips.
