Smart Key Control Module Connector End View (M30-B)

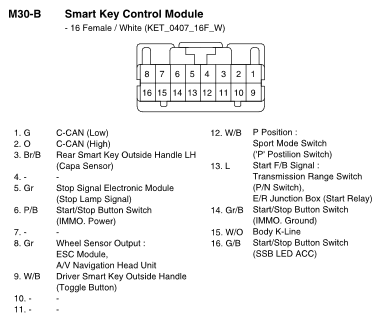

Fig 1: Smart Key Control Module Connector End View (M30-B)

G10734474

Courtesy of HYUNDAI MOTOR AMERICA
