Components and Components Location: Components

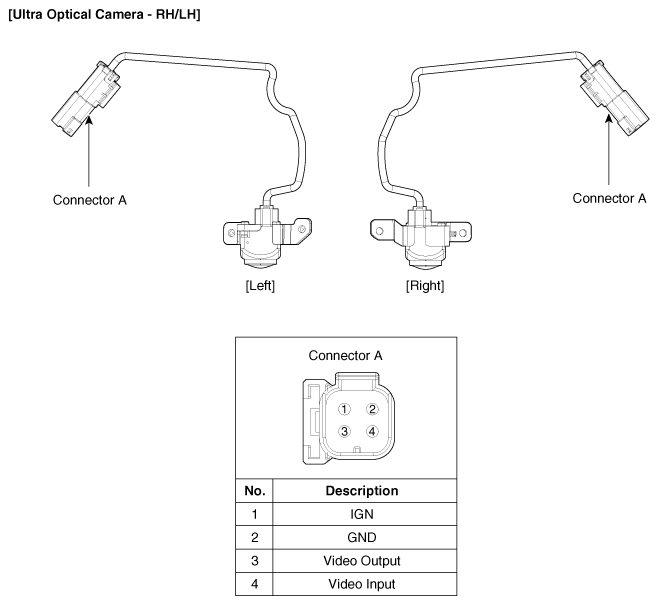

Fig 1: Pantoscopic Camera Components Location (Front)
G09791435Courtesy of HYUNDAI MOTOR AMERICA

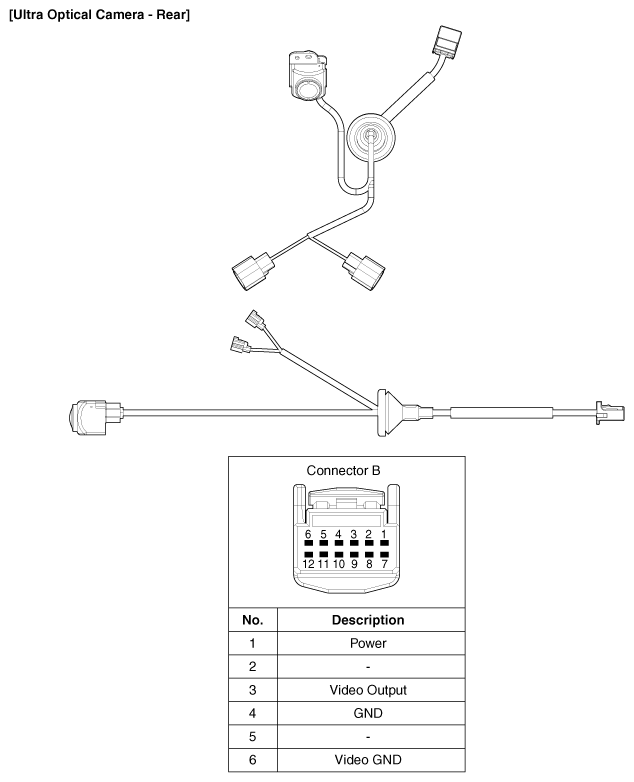

Fig 2: Pantoscopic Camera Components Location (Rear)
G09791436Courtesy of HYUNDAI MOTOR AMERICA
