[Bank 1/Intake]

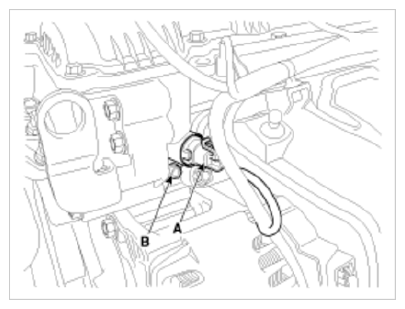

Fig 1: Identifying CVVT Oil Control Valve Connector And Bolt (Bank 1 / Intake)
G09885949Courtesy of HYUNDAI MOTOR AMERICA
