Repair Procedures: Removal

CAUTION: Place the shift lever in 4th shift position before removing it.

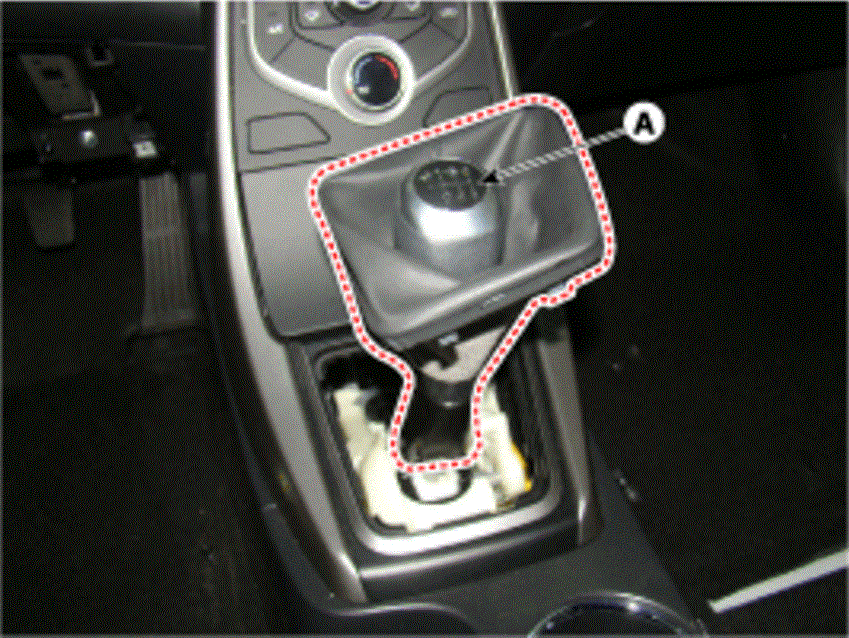

  1. Separate the boot and remove the knob (A) by rotating it counterclockwise.
    2. Fig 1: Shift Knob & Boot
    G00540397Courtesy of HYUNDAI MOTOR AMERICA
  2. Remove the floor Interior console assembly.

    (Refer to REPLACEMENT

  3. Remove the air duct (A) by removing the nut.
    Fig 2: Air Duct
    G00558356Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the bracket cover (A) by removing the nuts.
    Fig 3: Bracket Cover
    G00558357Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the select cable (B) by removing the snap pin (A).
    Fig 4: Select Cable & Snap Ring
    G00558358Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the shift lever assembly (A) by removing the bolts.
    7. Fig 5: Shift Lever Assembly
    G00558359Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the shift cable (B) by removing shift cable clip (A).
    8. Fig 6: Shift cable & Shift Cable Clip
    G00558360Courtesy of HYUNDAI MOTOR AMERICA
