Home >> Hyundai >> 2014 >> Elantra GT Standard Trans >> Repair and Diagnosis >> Engine Mechanical >> Starter >> Starting System >> Starter >> Components and Components Location >> Components

Components and Components Location: Components

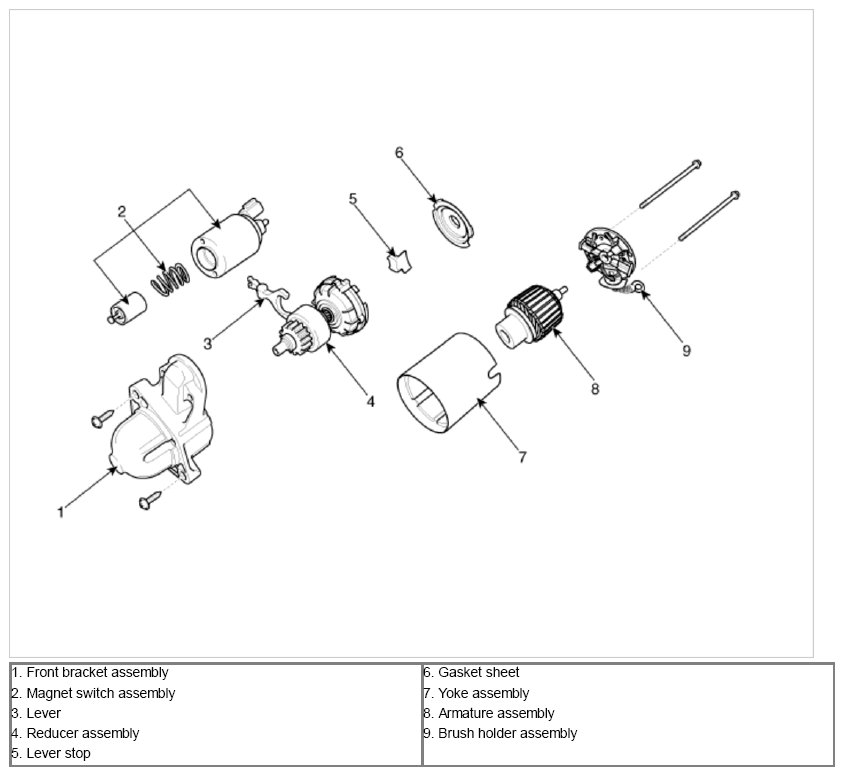

Fig 1: Identifying Starter Components Location

G09885765

Courtesy of HYUNDAI MOTOR AMERICA
