Components and Components Location: Components

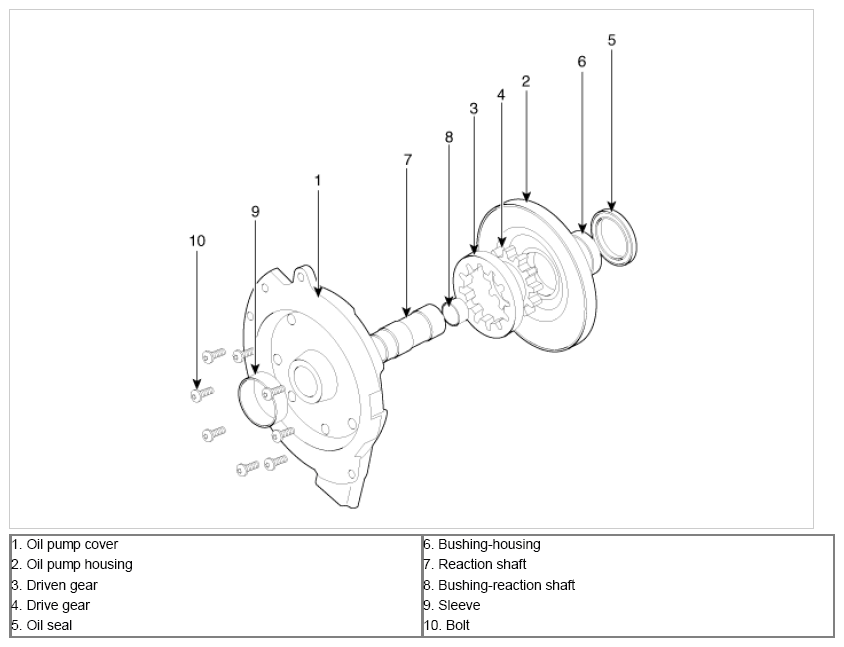

Fig 1: Oil Pump Components Location

G09886178

Courtesy of HYUNDAI MOTOR AMERICA
