Description and Operation: Description

Inhibitor Switch monitors the lever's position (P, R, N, D) and is used to control gear setting signals.

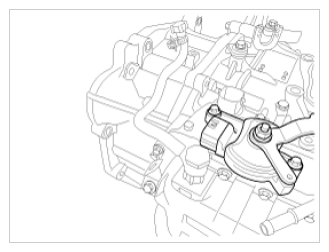

Fig 1: Identifying Inhibitor Switch
G09886277Courtesy of HYUNDAI MOTOR AMERICA
