Repair procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Disconnect ignition lock switch connector (A).

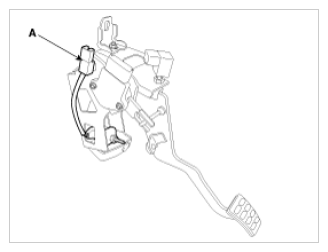

    Fig 1: Identifying Ignition Lock Switch Connector
    G09886041Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the ignition lock switch by loosening a nut (A).

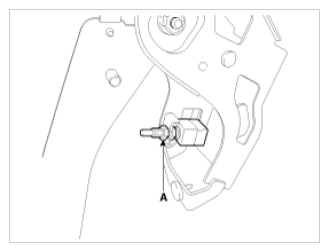

    Fig 2: Identifying Ignition Lock Switch Nut
    G09886042Courtesy of HYUNDAI MOTOR AMERICA
